Algiculture Implements

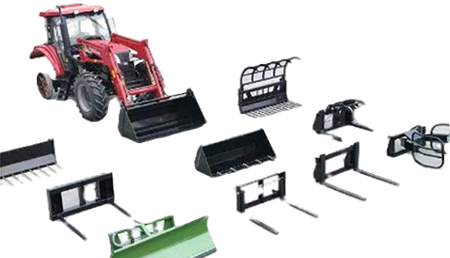

Front Loader & Backhoe
| Model |
TZ02D
|
TZ03D
|
TZ04D
|
TZ06D
|
TZ08D
|
TZ10D
|
TZ12D
|
TZ16D
|
| Power (HP) | 15～25 | 20～40 | 30～55 | 45～60 | 55～75 | 70～100 | 90～140 | 140～180 |
| Max. Lift height H (mm) | 2350 | 2550 | 2740 | 3010 | 3400 | 3710 | 3970 | 4260 |
| Unloading height A (mm) | 1730 | 1840 | 2100 | 2370 | 2480 | 2720 | 3000 | 3200 |
| Loading height L (mm) | 2170 | 2370 | 2560 | 2830 | 3220 | 3490 | 3770 | 4000 |
| Bucket width (mm) | 1250 | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 | 2400 |
| Bucket capacity (m³) | 0.16 | 0.18 | 0.21 | 0.35 | 0.4 | 0.44 | 0.7 | 1.6 |
| Load capacity (kg) | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1600 |
